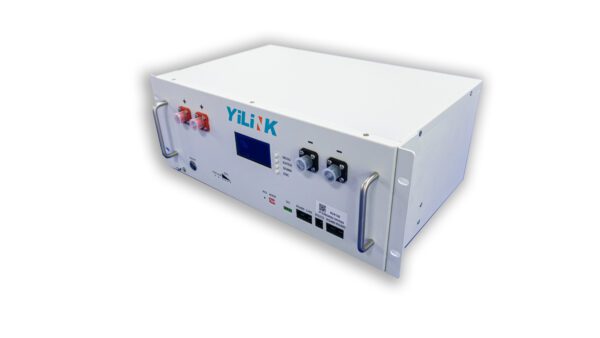

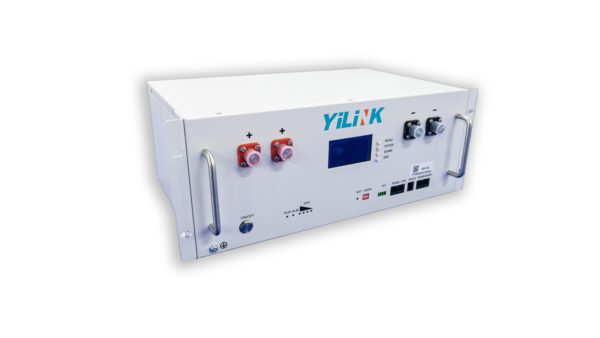

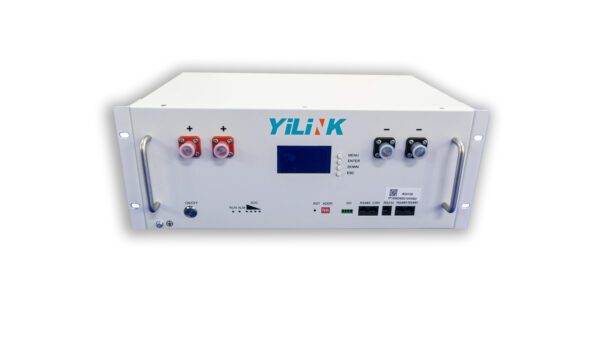

Yilink Batteria LifePo4 2.56Kw 100A 24v versione Rack 4U

0 Di 5

1.045,00 (Iva Escl.950,00)

Availability: Esaurito Categorie: , ,

In totale ci sono 1 interessati a questo prodotto

Descrizione

Yilink Batteria LifePo4 2.56Kw 100A 24v versione Rack 4U

Dotata di proprio BMS, può essere utilizzata con qualsiasi inverter a 24v.
Possibilità di collegamento cavo di comunicazione BMS con gli inverter Voltronic (tutti i modelli dotati di porta BMS) quali Axpert King, Vm III, Vm IV, Mks III, Mks IV, Axpert Max (tutti i modelli 24v)

Battery Pack Parameters



No.





Items





General Parameter





Remark





1

Combination method

8S

2

Nominal Voltage

25.6V





3





Rated Capacity

Typical

100Ah

Minimum

100Ah

4

Energy

2560Wh

5

Factory Voltage

25.6~27.2V

Mean Operation Voltage

6

Voltage at end of Discharge

20~22.4V

Discharge Cut-off Voltage

7

Voltage at end of Charge

28~29.6V

Charge Cut-off Voltage





8









Standard charge

Constant Current 20A Constant Voltage see No.7

0.02CA cut-off





Charge time : Approx 5~6 h

9





Limiting current

20A

BMS Limited (Charge current is

≥100A to open the current Limit)

10

Standard discharge

Constant current20A end voltage see NO.6

11

Maximum Continuous Charge Current

100A

50ºC≥T≥5ºC

12

Maximum Continuous Discharge Current

100A

55ºC≥T≥0ºC













13









Operation Temperature Range

Charge:0~55

60±25%R.H.

No matter what mode the battery is in, once the temperature is found to exceed the absolute temperature range, stop charging or discharging immediately









Discharge:20~60









14









Storage Temperature Range

Less than 6 months: -10~35





60±25%R.H.

at the shipment state

Less than 3 months: -10~45

Less than 1 months: -20~55

15

Dimensions(W*D*H)

442*280*178mm

Include case

16

Net Weight

27Kg

Include case

















17

















Internal Impedance













40mΩ

Internal resistance measured at AC 1KHZ after 50% charge.

The measure must uses the new batteries that within one week after shipment and cycles less than 5

times.

Battery Management System





Function

























Alarm

Cell over-charge voltage

Cell charge low temperature

Cell over-discharge voltage

Cell charge over temperature

Pack over-charge voltage

Cell discharge low temperature

Pack over-discharge voltage

Cell discharge over temperature

Over-current charge

Environment low temperature

Over-current discharge

Environment over temperature

Mos over temperature





















Protection

Cell over-charge voltage

Cell charge over temperature

Cell over-discharge voltage

Cell discharge low temperature

Pack over-charge voltage

Cell discharge over temperature

Pack over-discharge voltage

Environment low temperature

Over-current charge

Environment over temperature

Over-current discharge

Short circuit

Mos over temperature

Fault

Cell charge low temperature

















Others

Cell balance function

Communicate function

Total capacity function

Storage history function

Current limiting function

Dry contact function

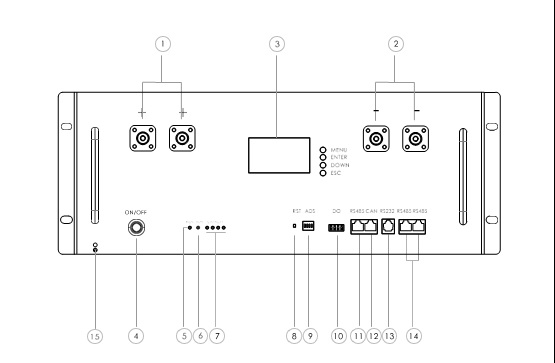

No.





Items





Description





1

+ Power terminal

Power cable terminals: one connect to equipment, the other one paralleling to other battery module for capacity

expanding

2

Power terminal

3

LCD Screen

Display the battery’s data

4

Power Switch

To turn ON/OFF while battery

5

Working indicator light

Display state information

6

ALM alarm indicator light

Red-trouble-light on

7

Capacity volume indicator

Display the battery’s capacity

8

Reset Key

Sleep /Activation /Reset





9





ADS Dialer

4 ADD switches, to definite different address code for each battery module when multiple modules are cascaded, up to 15

addresses





10





Dry Contact Terminal

1/2 Normally open, closed during fault protection;

3/4 Normally open, closed when a low battery alarm

11

RS485

RJ45 Port,used to connect to the inverter’s RS485 port

12

CAN

RJ45 Port,used to connect to the inverter’s CAN port





13





RS232

RJ11 Port,used battery condition monitoring or manufacturer to

debug or service

14

RS485

RJ45 Port,used communication in parallel

15

Grounding Point

Safety

Attenzione il prezzo di vendita di questi prodotti è con IVA al 10% in caso di acquisto dovrete compilare una dichiarazione che i prodotti verranno utilizzati per un impianto ad energie rinnovabili
Il prodotto è vendibile con iva ridotta al 10% esclusivamente a residenti italiani con spedizione in italia. In caso di clienti esteri il prezzo verrà ricalcolato in base alla aliquota IVA del paese di destinazione
IL MODULO LO TROVATE QUI
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
IL PRODOTTO NON POTRA’ ESSERE SPEDITO FINO ALLA RICEZIONE DEL MODULO COMPILATO
ALL’INDIRIZZO EMAIL ebay.barbasrl@gmail.com o per fax allo 0545030125

Informazioni aggiuntive

Peso 27 kg
