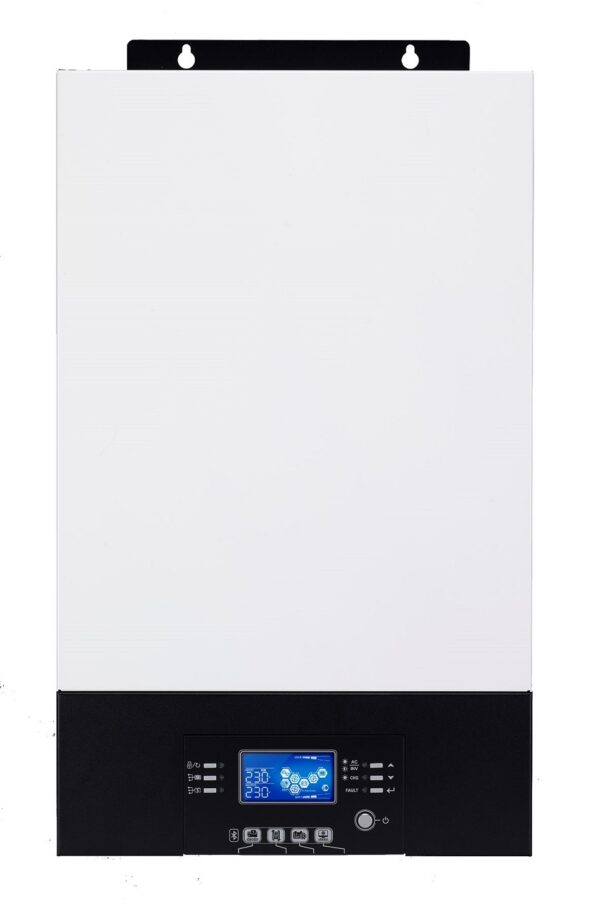

Voltronic Axpert King 5Kw 48V 5000-48 Off Grid Island Solar Inverter
€708,40 (Tax Excl. .€644,00)
• Alternating Current Power 5kw
• 48V battery pack support
• Installable power 4kw panels
• Zero transfer time (0 ms) to protect critical loads such as servers and ATMs
• Removable LCD control module with multiple communications
• Integrated Bluetooth for mobile monitoring (Android app available)
• Supports USB On-the-Go function
• Communication port reserved for BMS (RS485)
• Configurable timer and priority of use of the AC / PV output
• Pure sine wave solar inverter
• High power selectable charging current
• Wide range of DC inputs
• Compatible with mains voltage or generator power supply
• Automatic restart during CA recovery.
• Overload and short circuit protection
• Smart charger design for optimized battery performance
• Cold start function
• Optional parallel operation up to 9 units
• Direct BMS support of Pylontech US2000 / US3000, SP24 batteries all
- Description
- Additional information
- Reviews (0)
Description
Voltronic Axpert King 5Kw 48V 5000-48 Off Grid Island Solar Inverter
SPECIFICATIONS
Table 1 Line Mode Specifications
|
INVERTER MODEL |
3KW |
5KW |
|
Input voltage waveform |
Sinusoidal |
|
|
Rated input voltage |
230Vac |
|
|
Low voltage loss |
110Vac ± 7 V |
|
|
Low return voltage loss |
120Vac ± 7 V |
|
|
High voltage loss |
280Vac ± 7V |
|
|
High return voltage loss |
270Vac ± 7V |
|
|
Max. AC input voltage |
300Vac |
|
|
Rated input frequency |
50Hz / 60Hz (Auto Detect) |
|
|
Low frequency loss |
46 (56) ± 1Hz |
|
|
Low return frequency loss |
46.5 (57) ± 1Hz |
|
|
High frequency loss |
54 (64) ± 1Hz |
|
|
High return frequency loss |
53 (63) ± 1Hz |
|
|
Power factor |
>0,98 |
|
|
Short circuit protection at the output |
Differential Line Mode Battery mode Electronic circuits |
|
|
Efficiency (Line Mode) |
93% (peak efficiency) |
|
|
Transfer duration |
Line mode ßà Battery mode 0ms Inverter ßà Bypass 4ms |
|
Table 2 Battery Mode Specifications
|
INVERTER MODEL |
3KW |
5KW |
|
Rated output power |
3KVA / 3KW |
5KVA / 5KW |
|
Output voltage waveform |
Pure sine wave |
|
|
Output voltage regulation |
230Vac ± 5% |
|
|
Output frequency |
50Hz or 60Hz |
|
|
Peak efficiency |
90% |
|
|
Overload protection |
5s @ ≥150% load; 10s @ 105 %~150% load |
|
|
Overload capacity |
2 * Rated power for 5 seconds |
|
|
Nominal DC input voltage |
24Vdc |
48Vdc |
|
Exercise interval |
20Vdc -34Vdc |
40Vdc -66Vdc |
|
Cold start voltage |
23Vdc |
46Vdc |
|
Low DC alarm voltage |
22.5Vdc 22.0Vdc |
45.0Vdc 44.0Vdc |
|
@ load< 50% |
||
|
@ load ≥ 50% |
||
|
DC Low Return Voltage Alarm |
23.5Vdc 23.0Vdc |
47.0Vdc 46.0Vdc |
|
@ load< 50% |
||
|
@ load ≥ 50% |
||
|
DC Low Voltage cutoff |
21.5Vdc 21.0Vdc |
43.0Vdc 42.0Vdc |
|
@ load< 50% |
||
|
@ load ≥ 50% |
||
|
DC High Recovery Voltage |
32Vdc |
64Vdc |
|
DC High Cutoff Voltage |
34Vdc |
66Vdc |
|
Consumption without load |
<75W |
<75W |
|
INVERTER MODEL |
3KW |
5KW |
|
Nominal power |
1500W |
4000W |
|
Maximum charge current |
60A |
80A |
|
Efficiency |
98.0% max. |
|
|
Max. PV array open circuit voltage |
145Vdc |
|
|
PV array MPPT voltage range |
30 ~ 115Vdc |
60 ~ 115Vdc |
|
Battery Voltage Accuracy |
+/-0,3% |
|
|
PV voltage accuracy |
+/- 2V |
|
|
Charging algorithm |
3-Step |
|
|
Joint charging of AC and solar grid |
||
|
Maximum charge current |
120A |
140A |
|
Default charging current |
60A |
|
Table 4 Bypass Mode / ECO Mode Specifications
|
Bypass mode |
||
|
INVERTER MODEL |
3KW |
5KW |
|
Input voltage waveform |
Sinusoidal |
|
|
Low voltage loss |
176Vac ± 7V |
|
|
Low return voltage loss |
186Vac ± 7V |
|
|
High voltage loss |
280Vac ± 7V |
|
|
High return voltage loss |
270Vac ± 7V |
|
|
Rated input frequency |
50Hz / 60Hz (Auto Detect) |
|
|
Low frequency loss |
46 (56) ± 1Hz |
|
|
Low return frequency loss |
46.5 (57) ± 1Hz |
|
|
High frequency loss |
54 (64) ± 1Hz |
|
|
High return frequency loss |
53 (63) ± 1Hz |
|
Table 5 General Specifications
|
INVERTER MODEL |
3KW |
5KW |
|
SCC type |
MPPT |
|
|
Possible Parallel |
YES |
|
|
Communication |
RS232 and Bluetooth |
|
|
Safety certification |
THERE IS |
|
|
Operating temperature range |
0 ° C – 55 ° C |
|
|
Storage temperature |
-15 ° C ~ 60 ° C |
|
|
Humidity |
5 – 95% relative humidity (non-condensing) |
|
|
Dimensions (P * L * H), mm |
140 x 303 x 525 |
|
|
Net weight, kg |
13,0 |
13,5 |
.
The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In the case of foreign customers, the price will be recalculated based on the VAT rate of the country of destination
THE FORM YOU CAN FIND HERE
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
THE PRODUCT CANNOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED
TO THE EMAIL ADDRESS ebay.barbasrl@gmail.com or by fax to 0545030125
Additional information
| Weight | 13 kg |
|---|---|
| EAN | 8050030420158 |
