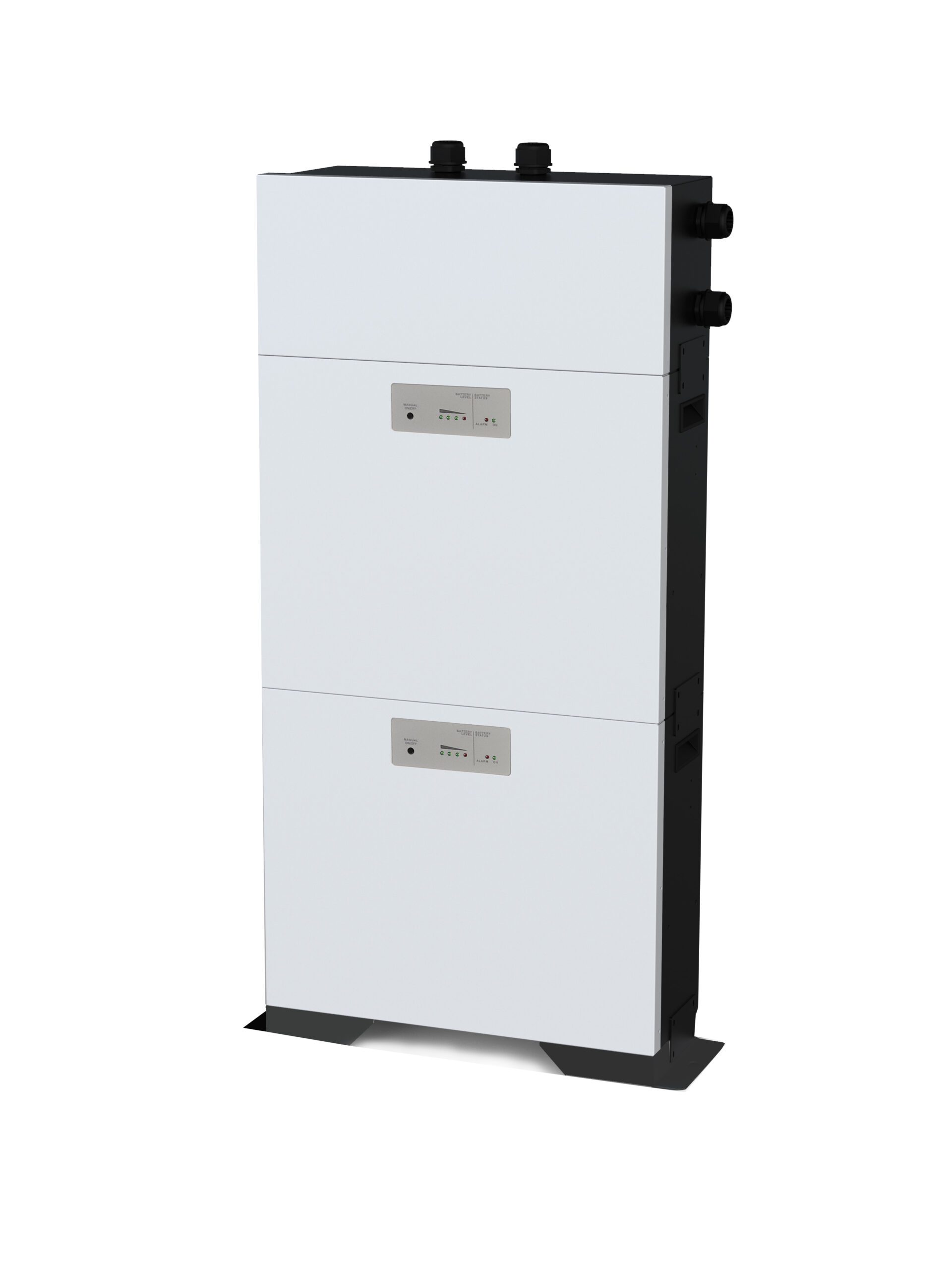

LIO II-4810 LIFEPO4 BATTERY 5.12KW 48V

BATTERY MODULE

LIO II-4810

CAPACITY

5120Wh

PARAMETERS

Norminal Voltage

51.2VDC

Full Charge Voltage(FC)

56V

Full Discharge Voltage(FD)

42V

Typical Capacity

100 Ah

Max Continuous Discharging Current

150A

Max Discharging Current

192A at 1min

Protecttion

BMS, breaker

Charge Voltage

56V

Charge Current

20A (0.2C)

Maximum Charge current

50A (0.5C)

Standard Charge method

0.2C CC (Constant current) charge to FC,
CV (Contstant voltage FC) charge till charge current decline to <0.05C

Inner Resistance

≤20m ohm

PHYSICAL

Dimension, DXWXH (mm)

214 x 621 x 550

Net Weight (kgs)

55

*These figures may vary depending on different AC voltage and contry regulation.

Product specifications are subject to change without further notice
